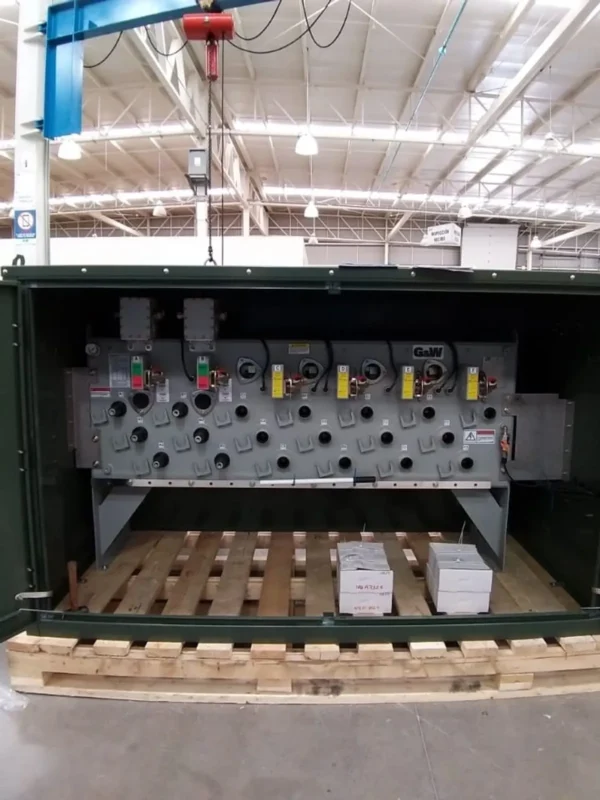

Pedestal type disconnector.

G&W Electric Co. pedestal-type disconnectors , for design voltages from 15 kV (13.8 kV), 27 kV (23 kV) and 38 kV (34.5 kV). Multiple models comply with VM00051 (SF6 gas pedestal-type disconnector) and VM00074 (solid-insulation pedestal-type disconnector) .
Canada Power Products (CPPC) disconnectors in design voltages from 15 kV (13.8 kV) and 27 kV (23 kV) in compliance with CFE standard LAPEM VM00051 (Pedestal disconnector with SF6 gas insulation).
The disconnector tank is made of stainless steel and the cabinet is made of mild steel or stainless steel.
The size of the medium voltage disconnector ranges from two (2) to eight (8) sides.
Partido bus option.
The disconnector channels are fitted with well-type (200 A) or bolt-type (600 A) nozzles.
Option of internal grounding to the equipment or by pre-molded accessories.
Various operating options : Disconnector with manual operation, Disconnector with future remote control, Disconnector with automatic operation (remote-controlled disconnector or disconnector with automatic transfer).
