Integrated Measurement Transformers (TIM CFE) for Electrical Distribution: Compact Solutions

Integrated Measuring Transformer

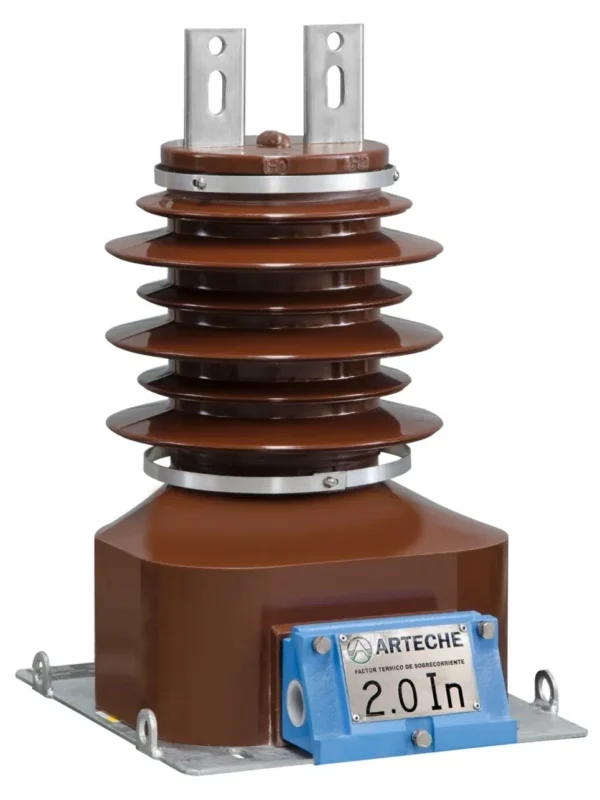

CFE TIMs are an integrated electrical metering solution that combines both a current and potential transformer in a single unit. This compact design is ideal for limited space, such as compact electrical substations and metering points in urban areas.

Features and Benefits:
- Available for different voltage ranges: 13.8 kV, 23 kV and 35 kV.
- Models KM17, KM24 and KM36, adapted to various measurement needs.
- Voltage Ratios (TP): 8,400:120 V for 13.8 kV, 14,400:120 V for 23 kV, and 20,125:115 V for 35 kV.
- Current Ratios (CT): 10:5 A for low consumption, 50:5 A for medium consumption, and 200:5 A for high consumption.
- They facilitate installation and maintenance thanks to their compact design.
- CFE G000-90, VE100-13, VE100-29 certifications that guarantee its quality and safety.
