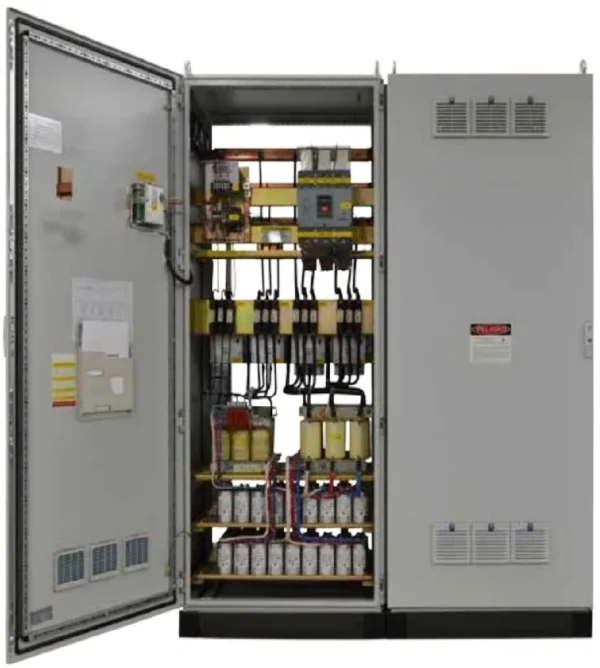

Bank with filter

The passive harmonic filter type harmonic filter (fixed filter and automatic filter): Ideal for installations where harmonic levels are relatively low and high precision in correction is not required.

• Phases: 3
• Frequency: 60 Hz
• Voltages: 240, 480 and 600 V*
• Capacity: 3 to 300 kVAR
• Enclosure: Nema 1, Nema 12, Nema 3R
• Tuning: 5th, 7th, 11th.

Ultra-fast harmonic filters (SmartVar) : Used to filter out high-frequency harmonics in power systems, hence the use of thyristors in these ultra-fast solutions. This type of filter uses electronic switching technology to eliminate harmonics in real time, achieving high efficiency in suppressing high-frequency harmonics. Furthermore, ultra-fast harmonic filters can dynamically adapt to changes in power grid conditions, making them suitable for a wide variety of applications in critical power systems.

• Thyristor design
• Power System: 3 phases, 3 wires.
• Frequency: 60 Hz
• System Voltage: 240 V, 480 V or 600 V, 2.4 kV, 4.16 kV, 7.2 kV, 13.8 kV, 23 kV.
• Power: Unlimited.
• VARs / Module: 25 to 100 kVAR per module.
• Response time: 80/100 ms.
• Cabinet: Nema 1 and Nema 3R.
• Standards: NEMA, ANSI, UL, CUL, IEC, EIA, IEEE, NFPA.
